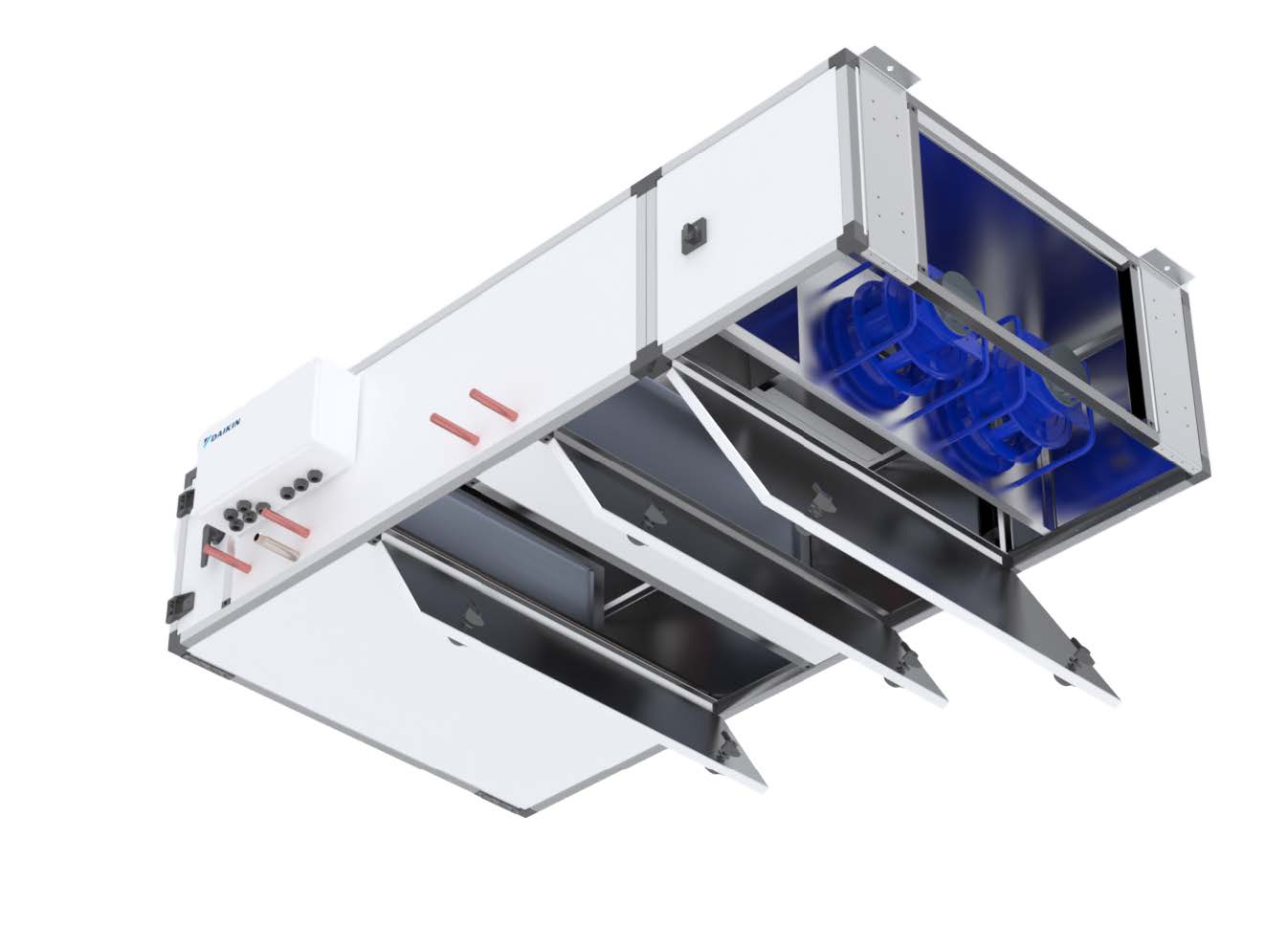

Terra – AHU with VRV Integration
Terra helps to reduce the carbon footprint of buildings, while bringing 100% fresh outside air into the space. Terra integrates with Daikin’s VRV technology for accurate temperature or temperature and humidity control all year round. The Terra unit, Daikin controller(s), and optional electric pre-heater can all be powered from a single-point power connection.
Terra units have a 18 – 24” depth and 450 – 4,800 cfm range. The modular split configuration allows the 100% outside air solution to be installed indoors, within the ceiling plenum, freeing up valuable roof, floor, and/or mechanical room space while providing better air control to zones.
With Daikin VRV heat recovery systems both leaving air temperature and humidity can be controlled accurately.
FEATURES
- High Efficiency Variable Speed EC Direct-Drive Motor
- Backward Inclined Fan(s)
- Standard Temperature Sensor (SA)
- Integrated Controls with BACnet IP and BTL-Certification
- Non-Fused Disconnect Switch
- 1” Foam Filled Double-Wall Panels (R6.5)
- Pre-Painted White Exterior Casing
- 22-Gauge Exterior / 20-Gauge Interior Galvanized Steel Panel
- Filter Alarms: Signaled by factory mounted pressure sensors to measure filter pressure drop across filter
- 2” MERV 13 Supply Air Filter
- Removable Hinge Pins for Limited Access
- Sensors for Dehumidification Control
VRV Integration
Healthy Air
Minimal Maintenance
