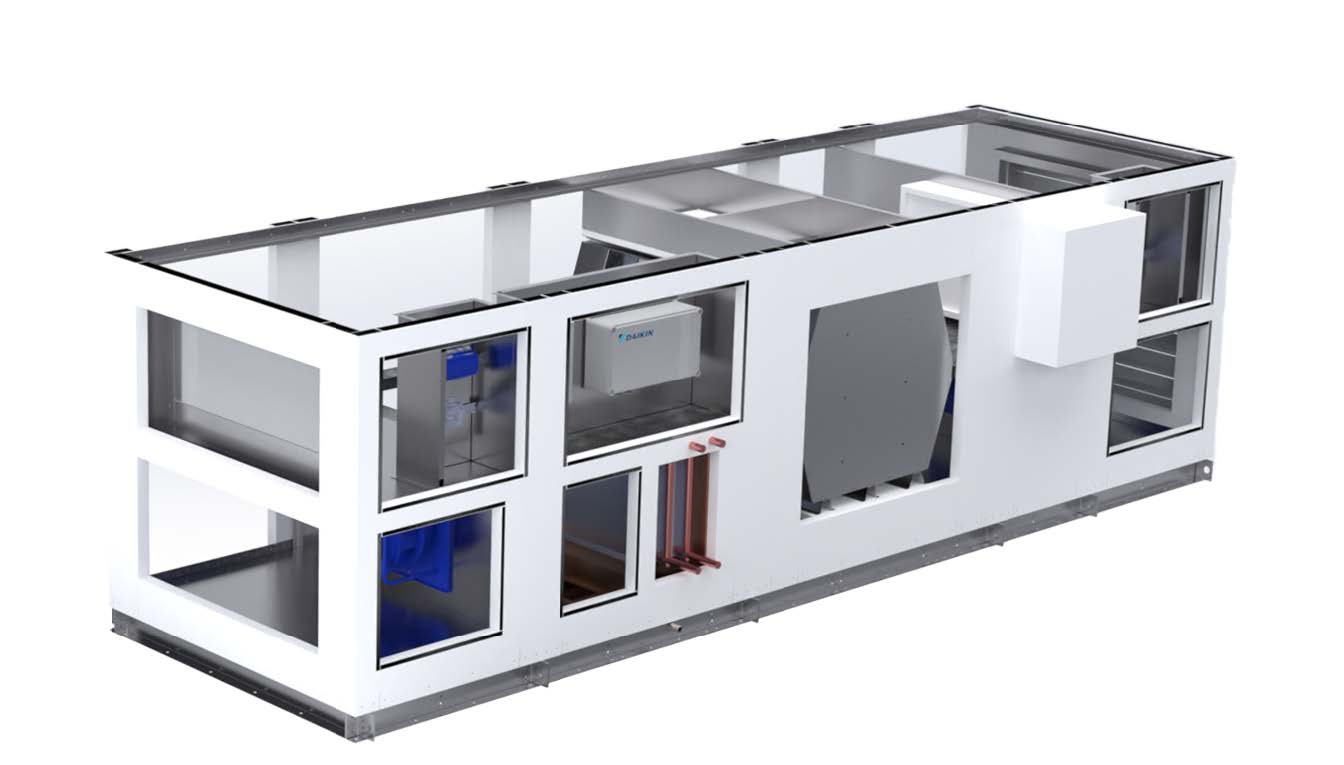

Ventum+ High-Efficiency Modular Counter-flow Core H/ERV
Oxygen8’s Ventum+ series is a modular design with a base H/ERV unit and optional coil modules for heating, cooling and Daikin VRV integration.
FEATURES
- Passive House Certified (in multiple models)
- High-Efficiency Counter-flow Core Allows for High Sensible (HRV) and Latent (ERV) Energy Recovery with no Moving Parts or Cross-Contamination
- High-Efficiency Variable Speed EC Direct-Drive Motor
- Plenum Backward Inclined Fans
- Factory-Mounted Shut-off Dampers (Standard for Outdoor Applications, available as optional for indoor applications)
- 4 Standard Temperature Sensors (OA, RA, EA, SA)
- Integrated Controls with BACnet IP and BTL-Certification
- Non-Fused Disconnect Switch
- 2” Foam-Injected Double-Wall Panels (6.5) -ERD
- Pre-Painted White Exterior Casing
- Galvanized Steel Panels
- 12-Ga Galvanized Steel Base Frame
- (24 Ga doors, 18 Ga structural posts, 18 Ga internal wall panels, 24 Ga external wall panels)
- Filter Alarms: Signaled by factory-mounted pressure gauges to measure filter pressure drop across filter
- 4” Pleated MERV 13 Outdoor Air Filter
- 4” MERV 8 Return Air Filter
- DAT Sensor for Temperature and Dehumidification Control
- Hydronic 2/3-Way Valves and Actuators for Field Installation
- Internally-located Control Panels
VRV Integration
Healthy Air
Minimal Maintenance
PROJECT HIGHLIGHT
Toronto Montessori School – Richmond Hill
The Toronto Montessori School’s Phase 4 construction at the 500 Elgin Mills campus involved the addition of several classrooms, expanding the school’s facilities. During the design phase, DXS collaborated with Farrow Partnership Architects and GPY & Associates Engineering Inc to ensure efficient HVAC system integration. As a result, the classrooms’ stringent air quality requirements were met, providing a conducive learning environment for the students.
