Ventum Lite – High Efficiency DOAS for Schools and Offices

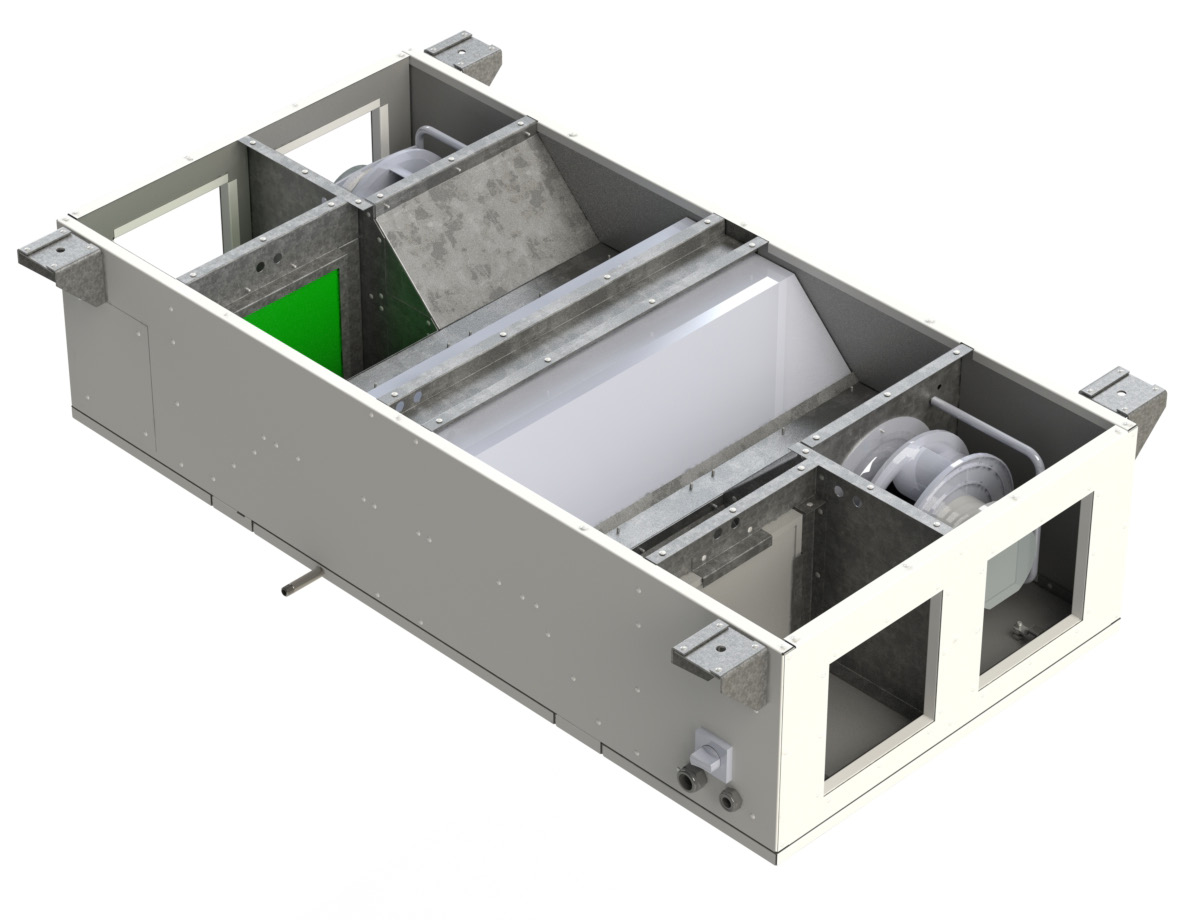

Oxygen8’s Ventum Lite Series is a compact, frameless, high-efficiency HRV design with optional duct-mounted heaters.
FEATURES
- Passive House Certified (in multiple models)
- High-Efficiency Counter-flow Core Allows for High Sensible (HRV) and Latent (ERV) Energy Recovery with no Moving Parts or Cross-Contamination
- High Efficiency Variable Speed EC Direct-Drive Motor
- Backward Inclined Fans
- Non-Fused Disconnect Switch
- Pre-Painted White Exterior Casing
- 18-Gauge Painted Steel Single-Wall Panel with Fiberglass Board Insulation
- 2” MERV 13 Supply Air Filter
- 2” Pleated MERV 8 Return Air Filter
- Removable Hinge Pins for Limited Access
- AHRI-Certified Counter-flow Core
Flexible Install
Healthy Air
Minimal Maintenance
PROJECT HIGHLIGHT
Toronto Montessori School – Richmond Hill
The Toronto Montessori School’s Phase 4 construction at the 500 Elgin Mills campus involved the addition of several classrooms, expanding the school’s facilities. During the design phase, DXS collaborated with Farrow Partnership Architects and GPY & Associates Engineering Inc to ensure efficient HVAC system integration. As a result, the classrooms’ stringent air quality requirements were met, providing a conducive learning environment for the students.
